Preparing the opening and window

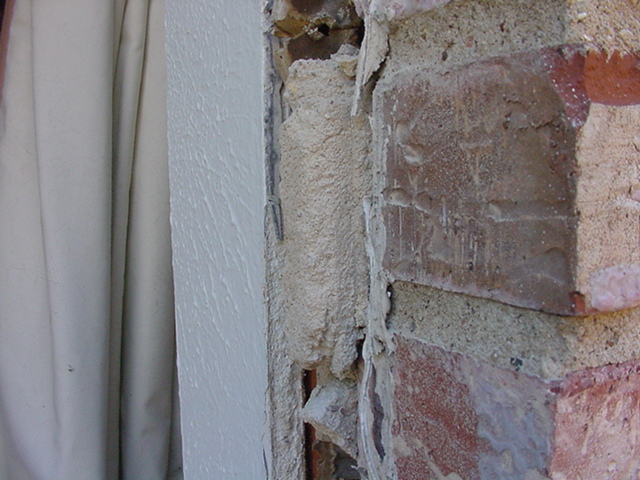

Remove mortor and caulk
As you can see the mortor is extending well into the opening and will
have to be chiseled off flush with the brick. Also cleanup as much of
the old caulking as you can being careful around the top few courses of
brick so you don't knock them loose.

Clean out for blocks

Installed blocking

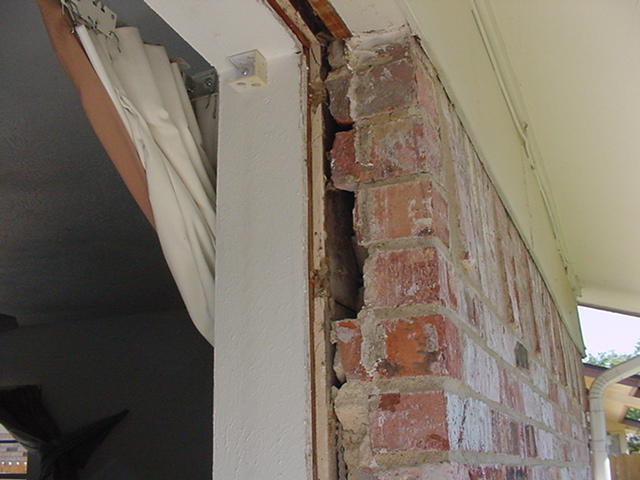

Top right

Top right block

Bottom left

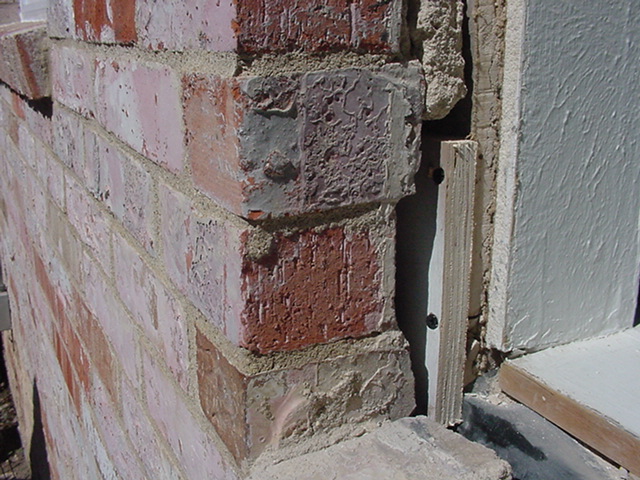

Bottom left block

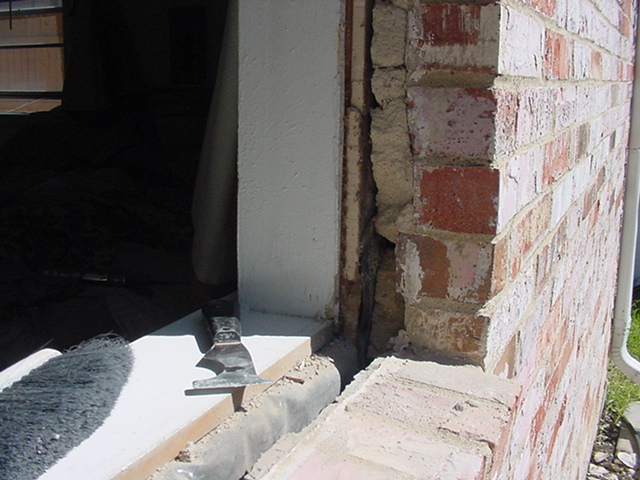

Bottom right

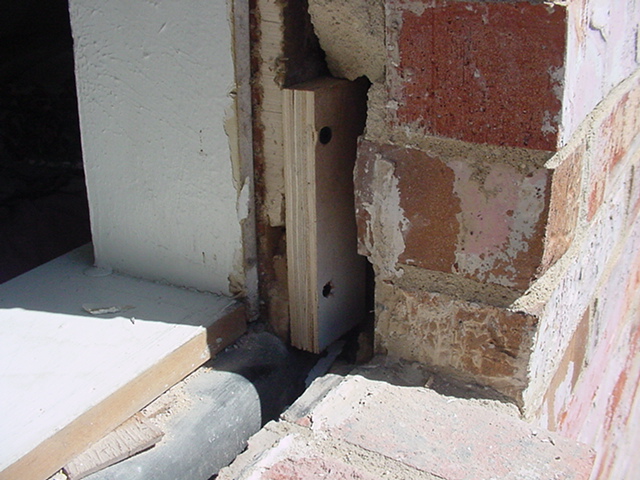

Bottom right block

Using a cole chisel clean out the mortor near the top and bottom of each side
of the opening, tall windows will need a block near the center also.
Then install 3/4 inch exterior plywood blocks flush with brick or held slightly
into the opening and fasten securly with screws.
Notice the difference in the locations from the top left to the top right because
of the longer soldier bricks on the right. This will work fine.

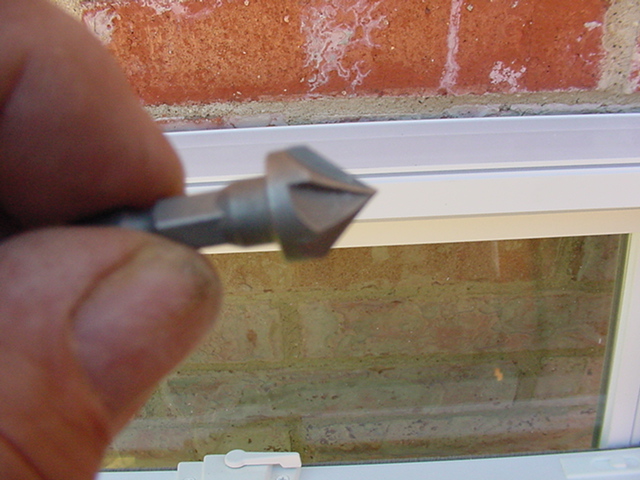

Countersink bit

Countersink screw holes

Drill 3/16 inch holes in sides of window frame to correspond with blocking.
Countersink each hole so sash does not hit screw head.

< Previous - Removing the frame NEXT - Installing the replacement window >
