(replace the rivets with nuts and bolts)

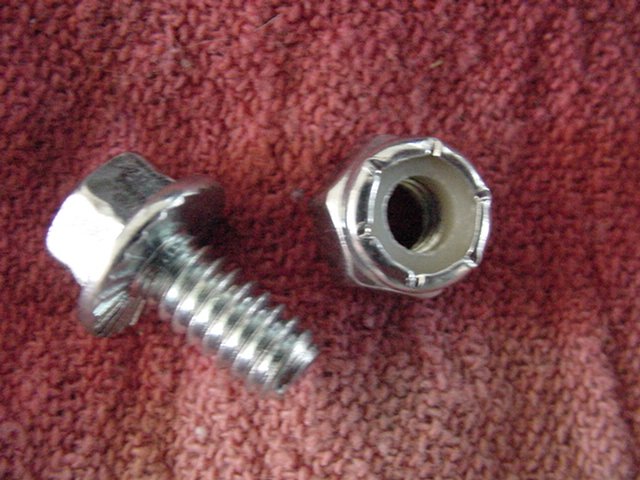

Take a trip to the hardware store and pickup four 1/4 inch nuts and four 1/4 x 1/2 inch long bolts.

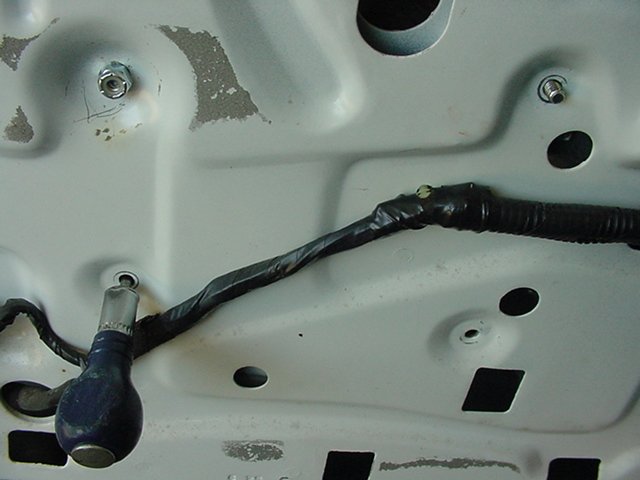

(align holes to install bolts)

Now would be a good time to add lubrication to the moving parts if needed then reinstall the
regulator. Align holes in regulator with access holes in door and install nuts and bolts. Install
the equalizer bracket. Connect the motor wiring and run motor till bracket holes on regulator
are visable through access holes in door. Lower window and attach glass to the regulator
bracket. Run the window up and down to check its operation. Install the water shield and the
handles foam gasket. Install speaker and door panel. Install screw through metal bracket on
door panel and secure to inner panel. Connect wires to the switches and install switch panel
insert v


Previous - Parts inspection


Door panel removal
Regulator removal
Parts inspection
Reinstallation
